●Description: The product integrates filtration, sewage, dosing disinfection system or ultraviolet disinfection system. The overall equipment is composed of the following components: PP shell or cover, a side-mounted glass fiber reinforced plastic filter (configured with multi-directional valve, filter material), an automatic chlorinator or ultraviolet sterilizer, and a valve group. It is mainly to complete the deep filtration of rainwater, with a filtration accuracy of 50-100 microns. The waste generated by rainwater filtration can be discharged through valve switching.
●Installation method: Before installation, a 100mm thick concrete cushion is required. The equipment is on the cushion. After the pipes are connected, the installation can be completed by directly backfilling. Brick wells are built at the top 1/3 of the device, and the precast cement cover is used as the inspection well , Easy to clean up.
●Application field: It is mainly used in the rear-end purification treatment system of rainwater collection. Different treatment media are adopted according to the water quality requirements of the water point to play a role of in-depth treatment.
●Product Affiliation: This device is one of the main equipment of rainwater collection and reuse system

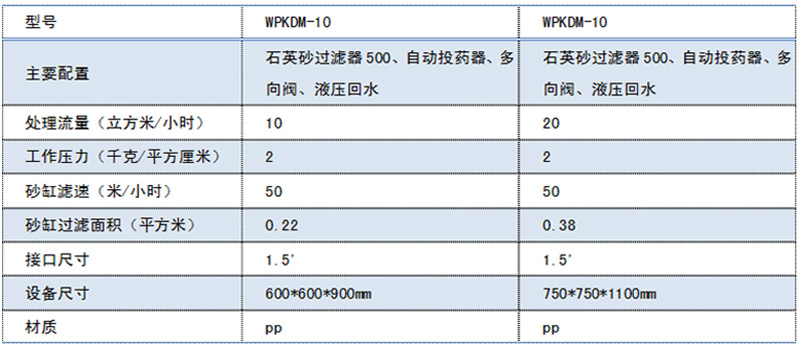

●Product parameter:
